NEPTUNE HORIZONTAL CENTRIFUGAL PUMP

Application area

This pump can be completely submerged in the pumped liquid; therefore, it is applicable in conditions of limited spaces, very deep tanks and wells, etc. Alfa submersible pumps are also manufactured from these materials such as ductile iron or superalloys with high abrasion resistance, depending on industrial applications. Housings can be covered from the inside with anti-abrasive rubber. Since this type of pump is not is self-priming, it must work under pressure. Designed for extremely harsh conditions operation, they are very reliable and economical due to its exceptional durability.

AXLE
With a horizontal axle with bearings in a watertight chamber, the size of which allows the front of the shaft to be cantilevered without supports immersed in the liquid.

BODY
The casing is divided into two halves with a special wear-resistant inner lining. With axial suction port and upward pressure port.

IMPELLER
Open type anti-clogging, made of a steel core coated with a special anti-abrasive compound.

SEAL GROUP
Consists of a double mechanical seal,
flushed with water.

BASE
Steel for fastening the pump to the floor.

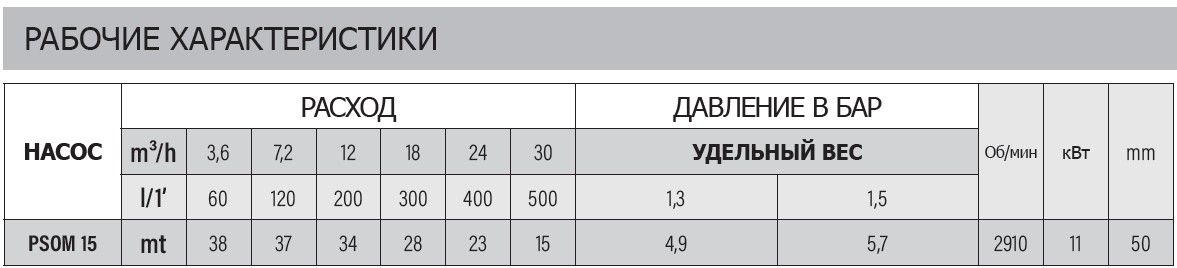

Indicative data, varying depending on the nature of the liquid, measured at the pump nozzle.
